WindowsでVerilog(Icarus Verilog)
2007年6月18日
Suns & Moon Laboratory
はじめに
WindowsでVerilog言語環境を整備。
インストール
Icarus Verilog
参考:Windows版 Icarus Verilog のインストールについて
Icarus Verilog for Windows
iverilog-0.9.4_setup.exe
- デフォルトインストール先が'C:\iverilog'になってる。
- GTKWave v3.3.8もインストールされます。
動作確認
こんなベンチを作成
testbench2.zip
下記コマンドを実行。(GNU Make 3.81)
make view
GTKWave起動

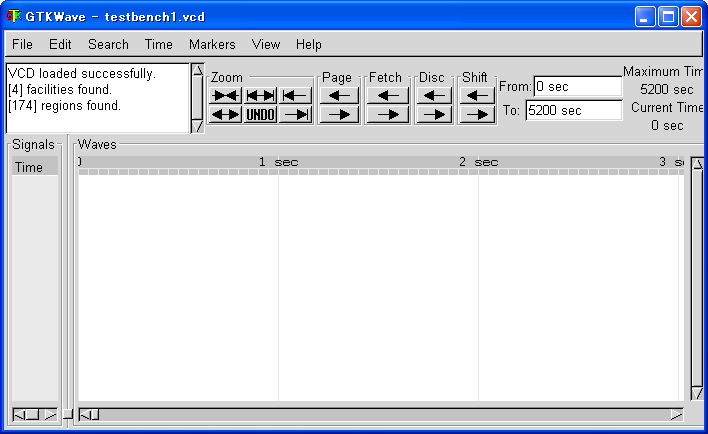

起動しただけでは波形が表示されません。

表示信号を選択

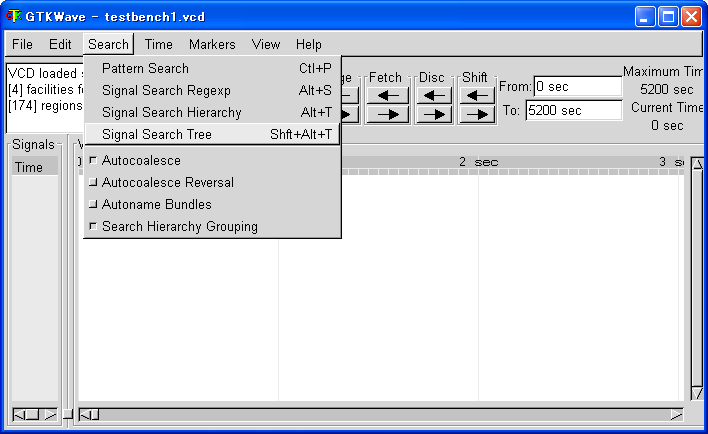

表示信号選択ダイアログ
モジュールまたは信号を選択して、appendボタンを押す。

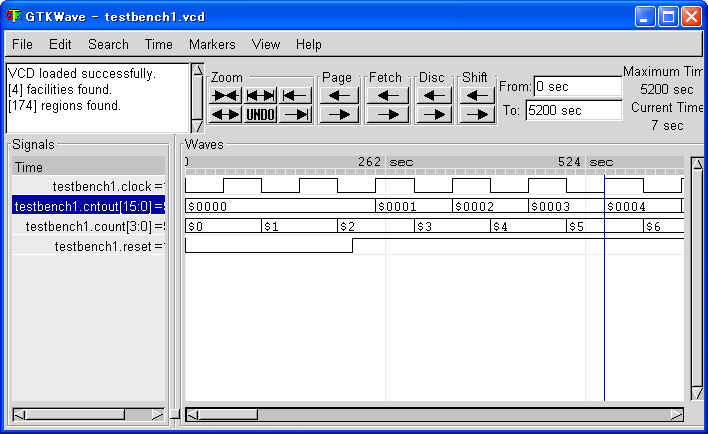

波形が表示されました。

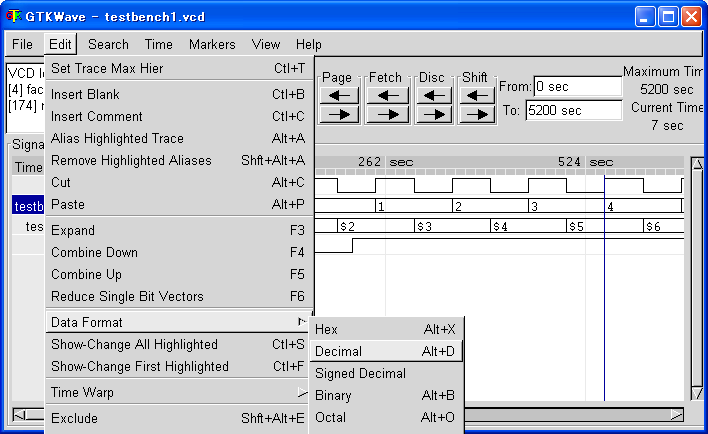

基数を10進数に変更。
